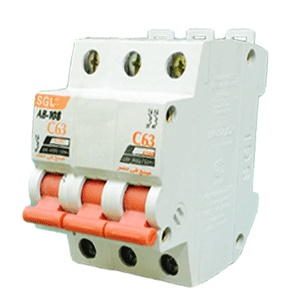

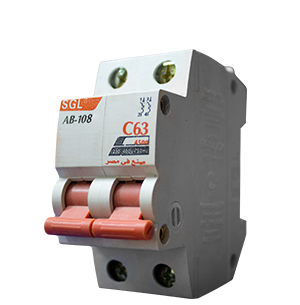

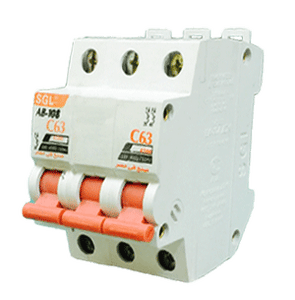

Circuit Breaker 1/2/3pole 10A - 63A

• Product code: 167044

• Poles: 3

• Rated Current: 10-63A

• Rated Breaking Capacity: 6KA

• Electrical Life : >8000

• Endurance: >2500

• Protection Degree: IP20

Technical Data

*Pole: 1P, 2P, 3P

*Rated voltage: AC230/400V

*Rated current (A) : 10, 16, 20, 25,32, 40, 63

*Tripping Curve: B,C,D

*High short ciruit breaking capacity (Icn) 6kA

*Rated Frequency: 50/60hz

*Energy limiting class: 3

*Rated impluse withstand voltage: 6.2kV
